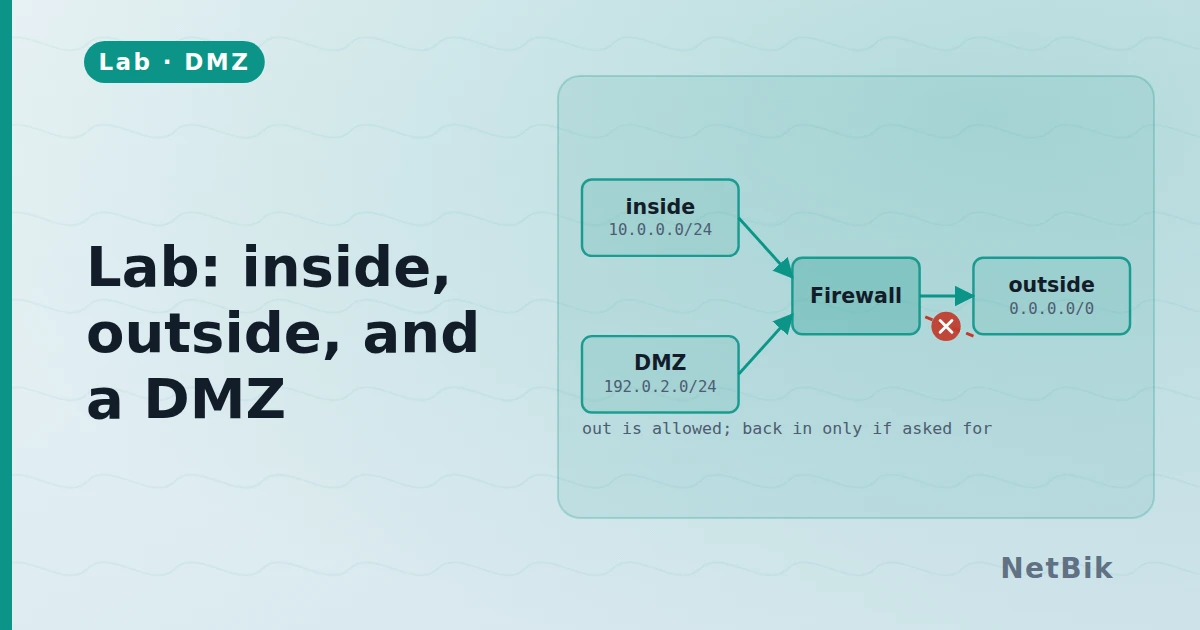

Lab: inside, outside, and a DMZ

A zone-based firewall thinks in zones and the pairs between them, and a zone pair is one-directional. That is the thing to get into your head before you touch the configuration.

Do this

• Put each interface into a zone: inside, outside, dmz.
• Create a zone pair inside → outside and permit inspection.
• Ping out. Works.
• Ping from outside to the DMZ. It fails, because there is no zone pair in
• Add outside → dmz, permitting only the service you are publishing.

R1(config)# zone-pair security IN-OUT source inside destination outside
R1(config-sec-zone-pair)# service-policy type inspect INSIDE-POLICY

The point

No zone pair means no traffic. It is not an implicit deny in a rule list somewhere — the pair simply does not exist, so there is nothing to evaluate. That is the opposite of the ACL model, where the filter exists and the default is deny; here the filter does not exist at all.

inspect is the other half: it builds state, so the return traffic is allowed without a second, opposite zone pair. Use pass and you will need one.

Try breaking it

• Put two interfaces in the same zone and notice traffic between them is not
• Leave an interface in no zone and see what happens to traffic reaching it.
• Replace inspect with pass and find out why the replies stop.
